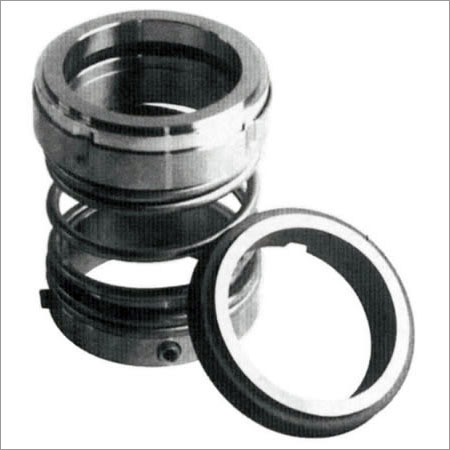

103-104-105-110 Mechanical Seal

103-104-105-110 Mechanical Seal
103-104-105-110 Mechanical Seal
Product Code : 01
Product Description

Since our inception, we are affianced in providing high quality 103-104-105-110 Mechanical Seal. This is widely used to make joints between parallel and right angled shaft. It helps sealing the rotating part of the shaft against the stationary part of the pump housing. Manufactured under the surveillance of deft team of experts by utilizing supreme quality materials, this is demanded in the market. We offer this 103-104-105-110 Mechanical Seal in different specifications at market leading price.

Features:

  • Robust construction
  • Operational fluency
  • Easy installation

Type

103, 104, 105, 110

MY 59 U

MY 37

Type MY

MY 100

MY 110

MY 200

MY 500

MY 600,700

Type 152

Type WB2

Pressure

0~1.0MPa

0~1.0MPa

0~1.0MPa

0~1.0MPa

0~2.5MPa

0~2.5MPa

0~1.0MPa

0~1.6MPa

MY600: 0~1.0MPa MY700: 0~2.5MPa

0~0.5MPa

0~0.5MPa

Temperature

-20~ 180℃ (350℃)

-20~ 230℃

-20~ 200℃

-20~ 200℃

-20~ 200℃

-20~ 200℃

-20~180 ℃

-20~ 180℃

MY600: -20~ 180℃, MY700: -20 ~ 450℃

-20~ 100℃

-20~ 100℃

Rotate Speed

< 10m/s

< 10m/s





< 20m/s

10m/s

< 10m/s

< 20m/s

< 10m/s

<10m/s

<10m/s

Medium

Oil, water, salt, alkali, organic solvent, etc.

Oil, water, salt, alkali, organic solvent, etc.

Oil, water, salt, alkali, organic solvent, etc.

Oil, water, salt, alkali, organic solvent, etc.

Oil, water, salt, alkali, organic solvent, etc.

Oil, water, salt, alkali, organic solvent, etc.

Oil, water, salt, alkali, organic solvent, etc.

Oil, water, salt, alkali, organic solvent, etc.

Oil, water, salt, alkali, organic solvent, etc.

Hydrochloric acid, chlorine gas and various strong corrosive media

Hydrochloric acid, chlorine gas and various strong corrosive media

Viscosity

















< 100 centipoise





Material of the Rotating and Stationery Rings

Resin-impregnated graphite (metal), silicon carbide, tungsten carbide, 1Crl8Ni9Tl surfacing cobalt tungsten alloy

Resin-impregnated graphite (metal), silicon carbide, tungsten carbide, 1Crl8Ni9Tl surfacing cobalt tungsten alloy

Resin-impregnated graphite (metal), silicon carbide, tungsten carbide, 1Crl8Ni9Tl surfacing cobalt tungsten alloy

Resin-impregnated graphite (metal), silicon carbide, tungsten carbide, 1Crl8Ni9Tl surfacing cobalt tungsten alloy

Silicon carbide- silicon carbide, resin-impregnated graphite (metal)-silicon carbide

Resin-impregnated graphite (metal), silicon carbide, tungsten carbide, 1Crl8Ni9Tl surfacing cobalt tungsten alloy

Resin-impregnated graphite (metal), silicon carbide, tungsten carbide, 1Crl8Ni9Tl surfacing cobalt tungsten alloy

Silicon carbide

Resin-impregnated graphite (metal), silicon carbide, tungsten carbide, 1Crl8Ni9Tl surfacing cobalt tungsten alloy

Aluminum oxide, PTFE

Aluminum oxide, PTFE

Remark





















This type of mechanical seal is mainly used to support the use of fluoroplastics pump and fluorine lining pump.
