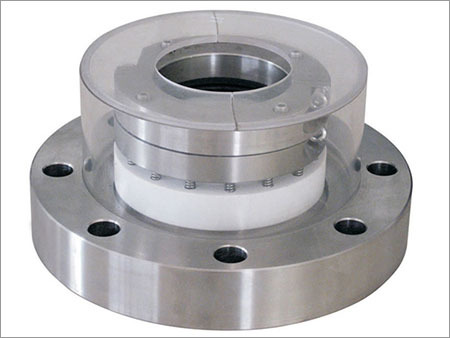

Dry Milling Type Mechanical Seal

Dry Milling Type Mechanical Seal
Dry Milling Type Mechanical Seal
Product Code : 01
Product Description
This Dry Milling Type Mechanical Seal is developed to provide excellent results and efficacy. It is widely used in different applications from automotive to mechanical systems. It is precisely designed to provide outstanding performance in high vacuum conditions.

Features:

  • Sturdy and durable design
  • Easy to apply and lubricate
  • Non-abrasive inner gears for ensuring maximum performance

Type

Dry Milling Type

FMY212

ZT212

FMY204

Type 205/206/207

Type 2001/2002/ 2004/2005

Type 2009/2010/ 2011/2012

Metal Bellows Mechanical Seal

Pressure

<0.5MPa

0-0.8MPa

0-0.4MPa

0.1-0.6MPa

205: 0.1-0.6Mpa, 206: 0.1-1.6MPa, 207: 0.1-2.5MPa

2001, 2002: 0.1-0.6Mpa; 2004, 2005: 0.1-1.6MPa

0.1-1.6MPa

Type2013,2014: 0.1-1.0MPa; Type2015,2016: 0.1-2.5MPa

Temperature

<120℃

-40~180℃

-20~120℃

-40~180℃ (350℃ ) A cooling water tank is needed to set when the temperature reaches 180℃. The mounting height of L2 and L3 is 80mm.

-20~180℃ (350℃) When the temperature raises 180℃, a high water tank is needed to set and the mounting height is 80mm.

-40~180℃ (350℃) When the temperature exceeds 180℃, a high water tank is required to set and the mounting height, L1 or L2, is heightened by 60mm.

Type2013,2014 -40-450℃; Type2015,2016 40-450℃

Rotate speed

300RPM

<2m/s

<2m/s

<2m/s

<2m/s

<2m/s

<2m/s

<2m/s

Medium

Different strong corrosive media  excluding hydrofluoric acid as well as crystalline media

Different strong corrosive media or crystalline media



Acid, polymer suspension,
alkali and oil

205, 206: Oil, water, weak base, weak acid and other general media; 206, 207: Oil, water, weak base, weak acid, flammable, explosive, toxic gases, etc.

2001, 2002: Oil, water,  weak acid, weak base, and other general media; 2004, 2005: Oil, water, weak base, weak acid, flammable, explosive, toxic gases, etc.



Various solvents, acids, alkalis, oils, polymer suspensio

Structural feature


With a stationery design, the MY212 product can rotate at a speed as high as 10m/s when applied to steel reactor.

This type of product is applicable to steel reactors.







The product is available  with assembled structure and the components  with strong university and non-directional transmission.

It is utilized for the shaft seal of enamel reactor,  with various strong corrosive media having particles. It is also used for supporting  hydraulic pump station.



Remark











When the working pressure is more than 0.6MPa, a pressure balancing device is  needed.






Reactor Using Mechanical Seal is perfectly designed for different sealing applications of stirring shaft. It is divided in single and double end surface as per the number of pairs of the sealing surfaces.
We offer 205, 206 or 207 types of product in double-end and multi-spring.  It provides the best sealing by creating a pressure difference between the sealing fluid available in the sealing chamber and the medium that has to be sealed. With unmatched efficacy, it is widely used in different applications from sealing of flammable, unstable and toxic gases having strict sealing requirements.

It adheres to suitable rotating and stationery rings materials along with clean lubricating media to minimize load factor of the end face. It prevents heat distortion to avoid abrasion and enhance the service life. We are a China-based leading Reactor Using Mechanical Seal manufacturer offering high temperature & pressure mechanical seal, sand mill, etc.
