Fluidized Bed Jet Mill System

Fluidized Bed Jet Mill System
Fluidized Bed Jet Mill System
Product Code : 01
Product Description

The QF fluidized bed jet mill is widely used for the ultrafine pulverizing of talc, barite, kaolin, quartz, graphite, ceramic, farm chemicals, western medicine, traditional Chinese medicine, non-metallic minerals, positive and negative materials of the battery, fire-retardant materials, etc.

Specifications

Model

QF-148

QF-248

QF-348

QF-488

QF-588

Production Capacity(kg/h)

5-100

50-200

80-380

200-500

400-1000

Air Consumption(m3/min)

3

6

10

20

40

Working Pressure (MPa)

0.75-0.85

0.75-0.85

0.75-0.85

0.75-0.85

0.75-0.85

Feed Particle Size(mesh)

60-325

60-325

60-325

60-325

60-325

Grinding Size(μm)

0.5-30

0.5-30

0.5-30

0.5-30

0.5-30

Installed Power(kw)

40

60

95

188

376

Compared with other similar products, our product can save 30% to 40% energy. There is no contamination to the materials, because the materials are driven by the air flow to collide with each other and crush. There is no other media involved, so no contamination is caused. Temperature inside the milling chamber will not rise, since the materials are pulverized under the condition of expanded gas.

The main pulverization involves collision among particles and the high-speed particles rarely collide with the machine wall, so there is small abrasion to the machine, which enables our product to grind materials with the Mohs hardness scale above 9.

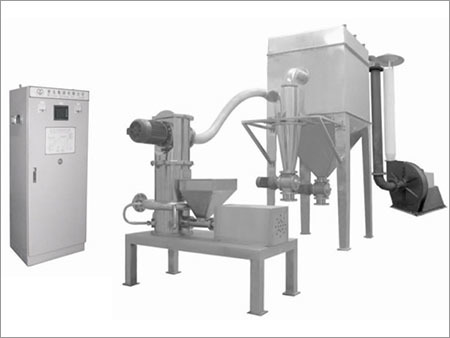

QF Fluidized Bed Jet Mill

Patented Product, Rights Reserved

  • Air Compressor
  • Air Tank
  • Oil Remover
  • Precision Filter
  • Air Freeze Dryer
  • QF Fluidized Bed Jet Mill
  • Cyclone Separator
  • Dust Collector
  • Draught Fan
  • Rotary Valve

Our company is a professional fluidized bed jet mill manufacturer and supplier in China. We offer a variety of products, including Horizontal Air Classifier, pump using mechanical seal, stainless steel reactor, and more.
