Horizontal Air Classifier

Horizontal Air Classifier
Horizontal Air Classifier
Product Code : 01
Product Description

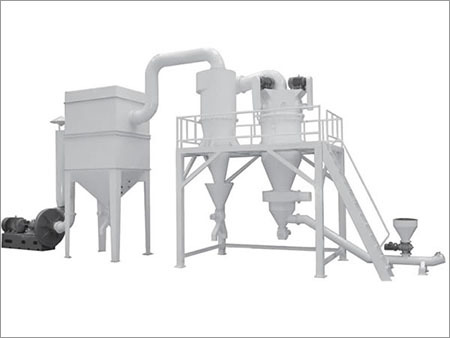

The Horizontal Air Classifier is a mandatory-type centrifugal classifier equipped with secondary air and horizontally mounted classifying rotor. It is composed of feeder, vane rectifier, grading rotor, etc.

Specifications

Model

WFJ-260

WFJ-400

WFJ-600

WFJ-800

WFJ-1000

WFJ-1500

Grinding Size (μm)

2-15

2-15

2-15

2-15

2-15

2-15

Capacity (kg/h)

50-200

300-1000

500-1500

1000-3000

2000-6000

6000-8000

Rotor Power (kw)

3.0

5.5

7.5

11×3

15×3

15×6

System Airflow (m3/h)

600

2100

5000

7500

9000

15000

Air Consumption (m3/min/MPa)

1.25/0.7

1 .8/0.7

2.5/0.7

4.5/0.7

6/0.7

10/0.7

Materials are fed through the upper tank and are sieved by the outside primary air. The particles are fully dispersed and rise to the grading zone. Particles are subjected to the centrifugal force produced by the grading rotor rotating at a high speed as well as centripetal force generated by the viscous effect of the airflow. When the centrifugal force acting on the particles is greater than the centripetal force, the coarse particles with the size larger than the grading diameter will be swirled done along the container wall. The outside secondary air is rectified by the guide vane into a uniform swirling flow which separates the fine particles from the coarse ones. Then, the coarse particles will be discharged from the lower port and the fine ones with the size below the grading diameter will go with the airflow into the cyclone separator and collector. The purified air is discharged through the draught fan.

This Horizontal Air Classifier can fit with various dry type powder milling machinery, such as jet mill, planetary mill, ball mill, Raymond mill, vibration mill, etc., to form a closed-circuit system. It has high grading efficiency and the particle size distribution is narrow. Ultrafine powder products, 97% of which have particle size less than 5μm, can be obtained. Made of abrasion resistant materials, the horizontal grading rotor has stable performance and long lifespan.

  • WFJ Turbine Type Air Classifier System
  • Cyclone Separator
  • Dust Collector
  • Draught Fan
  • Coarse Particles
  • Finished Products
  • Air
