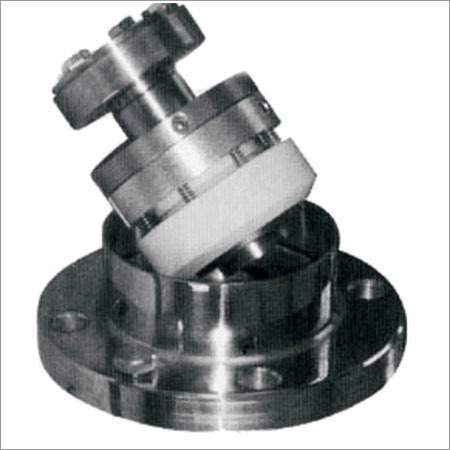

Mechanical Seals

Mechanical Seals
Mechanical Seals
Product Code : ZT212
Product Description

With the help of our team of technical experts, we are engaged in manufacturing and exporting outstanding quality Mechanical Seals. These are manufactured using optimum grade materials with the help of advanced technology. The offered seals are help to join systems or mechanisms together by preventing leakage. Our experts test these prior to dispatch from our end to ensure their hassle free performance at customer’s end. Moreover, these Mechanical Seals are applicable in motors.

Features:

  • Easy installation
  • Robust construction
  • Optimum strength

Type

Dry Milling Type

FMY212

ZT212

FMY204

Type 205/206/207

Type 2001/2002/ 2004/2005

Type 2009/2010/ 2011/2012

Metal Bellows Mechanical Seal

Pressure

<0.5MPa

0-0.8MPa

0-0.4MPa

0.1-0.6MPa

205: 0.1-0.6Mpa, 206: 0.1-1.6MPa, 207: 0.1-2.5MPa

2001, 2002: 0.1-0.6Mpa; 2004, 2005: 0.1-1.6MPa

0.1-1.6MPa

Type2013,2014: 0.1-1.0MPa; Type2015,2016: 0.1-2.5MPa

Temperature

<120℃

-40~180℃

-20~120℃

-40~180℃ (350℃ ) A cooling water tank is required to be set when the temperature exceeds 180℃. The mounting height, L2 and L3, is heightened by 80mm.

-20~180℃ (350℃) When the temperature exceeds 180℃, a high water tank is required to set and the mounting height, L1, is heightened by 80mm.

-40~180℃ (350℃) When the temperature exceeds 180℃, a high water tank is required to set and the mounting height, L1 or L2, is heightened by 60mm.

Type2013,2014 -40-450℃; Type2015,2016 40-450℃

Rotate speed

300RPM

<2m/s

<2m/s

<2m/s

<2m/s

<2m/s

<2m/s

<2m/s

Medium

Various strong corrosive media except hydrofluoric acid and crystalline media

Various strong corrosive media or crystalline media



Acid, alkali, oil, polymer suspension

205, 206: Oil, water, weak base, weak acid and other general media; 206, 207: Oil, water, weak base, weak acid, flammable, explosive, toxic gases, etc.

2001, 2002: Oil, water, weak base, weak acid and other general media; 2004, 2005: Oil, water, weak base, weak acid, flammable, explosive, toxic gases, etc.



Various solvents, acids, alkalis, oils, polymer suspension

Structural feature



With a stationery design, the MY212 product can rotate at a speed as high as 10m/s when applied to steel reactor.

This type of product is applicable to steel reactors.







The product has an assembled structure and the components have strong university. The transmission is non-directional.

It is mainly used for the shaft seal of enamel reactor and it can be applicable to various strong corrosive media with particles. It is usually used to support the use of hydraulic pump station.



Remark











When the working pressure is greater than 0.6MPa, a pressure balancing device is required.
