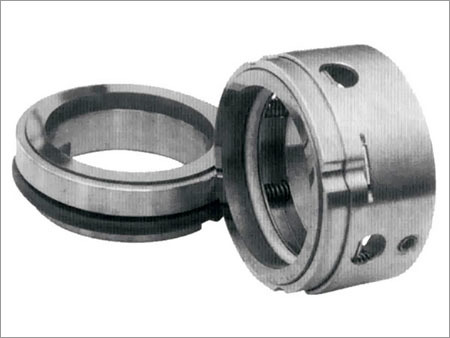

Pump Double Mechanical Seal

Pump Double Mechanical Seal
Pump Double Mechanical Seal
Product Code : 03
Product Description

Facilitated by technically advanced process, we are manufacturing and exporting an excellent quality range of Pump Double Mechanical Seal. Sturdy in construction and safe to operate, this is used to leak a vapor from the high pressure side to the low pressure side. We manufacture this seal at our technically sound production unit using optimum grade materials and highly advanced technology. Our quality inspectors test this Pump Double Mechanical Seal on diverse parameters before dispatching at clients’ end.

Features:

  • High operational fluency
  • Easy operations
  • Longer life

Type

103, 104, 105, 110

MY 59 U

MY 37

Type MY

MY 100

MY 110

MY 200

MY 500

MY 600,700

Type 152

Type WB2

Pressure

0~1.0MPa

0~1.0MPa

0~1.0MPa

0~1.0MPa

0~2.5MPa

0~2.5MPa

0~1.0MPa

0~1.6MPa

MY600: 0~1.0MPa MY700: 0~2.5MPa

0~0.5MPa

0~0.5MPa

Temperature

-20~ 180℃ (350℃)

-20~ 230℃

-20~ 200℃

-20~ 200℃

-20~ 200℃

-20~ 200℃

-20~180 ℃

-20~ 180℃

MY600: -20~ 180℃, MY700: -20 ~ 450℃

-20~ 100℃

-20~ 100℃

Rotate Speed

< 10m/s

< 10m/s





< 20m/s

10m/s

< 10m/s

< 20m/s

< 10m/s

<10m/s

<10m/s

Medium

Oil, water, salt, alkali, organic solvent, etc.

Oil, water, salt, alkali, organic solvent, etc.

Oil, water, salt, alkali, organic solvent, etc.

Oil, water, salt, alkali, organic solvent, etc.

Oil, water, salt, alkali, organic solvent, etc.

Oil, water, salt, alkali, organic solvent, etc.

Oil, water, salt, alkali, organic solvent, etc.

Oil, water, salt, alkali, organic solvent, etc.

Oil, water, salt, alkali, organic solvent, etc.

Hydrochloric acid, chlorine gas and various strong corrosive media

Hydrochloric acid, chlorine gas and various strong corrosive media

Viscosity

















< 100 centipoise





Material of the Rotating and Stationery Rings

Resin-impregnated graphite (metal), silicon carbide, tungsten carbide, 1Crl8Ni9Tl surfacing cobalt tungsten alloy

Resin-impregnated graphite (metal), silicon carbide, tungsten carbide, 1Crl8Ni9Tl surfacing cobalt tungsten alloy

Resin-impregnated graphite (metal), silicon carbide, tungsten carbide, 1Crl8Ni9Tl surfacing cobalt tungsten alloy

Resin-impregnated graphite (metal), silicon carbide, tungsten carbide, 1Crl8Ni9Tl surfacing cobalt tungsten alloy

Silicon carbide- silicon carbide, resin-impregnated graphite (metal)-silicon carbide

Resin-impregnated graphite (metal), silicon carbide, tungsten carbide, 1Crl8Ni9Tl surfacing cobalt tungsten alloy

Resin-impregnated graphite (metal), silicon carbide, tungsten carbide, 1Crl8Ni9Tl surfacing cobalt tungsten alloy

Silicon carbide

Resin-impregnated graphite (metal), silicon carbide, tungsten carbide, 1Crl8Ni9Tl surfacing cobalt tungsten alloy

Aluminum oxide, PTFE

Aluminum oxide, PTFE

Remark





















This type of mechanical seal is mainly used to support the use of fluoroplastics pump and fluorine lining pump.
