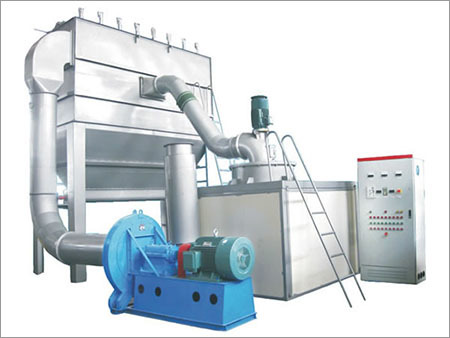

Roller Mill System

Roller Mill System
Roller Mill System
Product Code : 02
Product Description

Our roller mill is domestic advanced dry ultrafine powder grinding equipment for non-metallic ores. It crushes materials by the principles of impact, squeezing and grinding. Materials are crushed completely with desirable fineness. Compared with ball mill and other milling products, our product can reduce energy consumption by 30%

Specifications

Model

MT-188

HLM-880D

HLM-580

Mesh

Production Capacity (kg/h)

Power Consumption (kw)

Production Capacity (kg/h)

Power Consumption (kw)

Production Capacity (kg/h)

Power Consumption (kw)

400

6000-7000

22

4000-5000

27

1000-1200

50

800

3000-3500

45

1800-2100

60

800-900

70

1250

2000-2500

70

1200-1500

95

450-550

110

1500

1800-2000

73

1000-1200

110

350-400

140

1800

1500-1800

90

800-1000

136

300

185

2500

1200-1300

120

600-800

175

---------

---------

3000

900-1100

145

500-700

200

----------

---------

There is a big gap between the grinding wheel fixed on the support frame and the pin bearing. When the grinding wheel support frame revolves with the spindle, the grinding wheel is thrown to the grinding ring by the centrifugal force. It presses the inner wall of the grinding ring and rotates around the pin bearing. When getting through the gap between the grinding wheel and grinding ring, the materials are crushed by the impact, squeezing and grinding.

The inner grading device produces high precision classification. The grading wheel is specially designed and yields good grading effect without large particles. Wearing parts of this roller mill are made of special abrasion-resistant alloy and thus have long service life. With high efficiency, this product can save 60% investment.

We provide three models of this product with the mesh ranging from 400 to 3000. The production capacity is at least 6t/h for the MT-188 product with the mesh of 400 and it is 0.9t/h for the MT-188 product with the mesh of 3000.

As an experienced roller mill manufacturer and supplier in China, we provide a broad range of products that including horizontal sand mill, high temperature & high pressure mechanical seal, steam heating reactor, and more.
