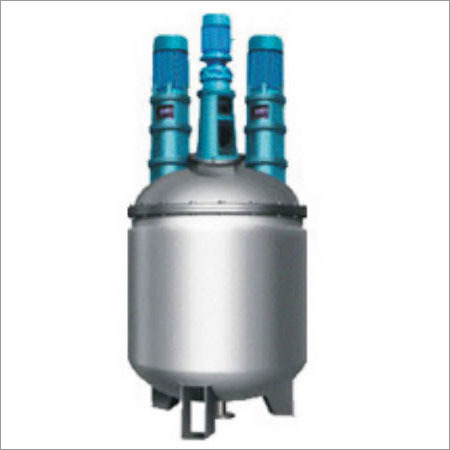

Stainless Steel Reactor

Stainless Steel Reactor
Stainless Steel Reactor
Product Code : 02
Product Description

The stainless steel reactor is widely used in the dye, rubber, petroleum, chemical, pesticide, pharmaceutical, food and other industries to complete the process of vulcanization, nitration, hydrogenation, alkylation, polymerization, condensation, etc.

We can make products with different kinds of stirrer, such as anchor type, paddle type, turbine type, frame type, propelled type, etc. Combination of different stirring forms is also feasible. Heating methods include electric heating, steam heating and heat conducting oil heating. Various heat exchangers can be customized, such as jacketed heat exchanger, coil heat exchanger, etc. Optional functions include sealing, explosion-proofing, and so on. With rich experience in the design, production and marketing of non-standard MFF High Speed Dispersing Reactor, we can better understand customers' demands, so special products can be made according to customers' requirements.

Parameter One

Model

Nominal Capacity (L)

Actual Capacity (L)

Heating Power (kw×qty.)

Capacity of the Oil Jacket (L)

Size of the Inner Pot Dmm

Size of the Jacket D1mm

Size of the Bearing Screw Hole D2mm

Expander Capacity (L)

n-d

50L

50

78

2×4

96

Ø400

Ø600

Ø828

10

4-25

100L

100

127

2×6

127

Ø500

Ø700

Ø928

15

4-25

300L

300

327

4×6

218

Ø800

Ø1000

Ø1148

20

4-25

500L

500

509

4×9

269

Ø900

Ø1100

Ø1252

25

4-25

1000L

1000

1017

4×12

400

Ø1200

Ø1400

Ø1588

40

4-30

2000L

2000

2154

4×15

850

Ø1400

Ø1600

Ø1840

80

4-30

3000L

3000

3201

5×15

1015

Ø1600

Ø1750

Ø2040

100

4-35

4000L

4000

4020

5×15

1226

Ø1600

Ø1750

Ø2070

120

4-36

5000L

5000

5170

5×18

1400

Ø1800

Ø2000

Ø2320

140

4-36

Parameter Two (Open Style≤1000L≤Closed Style)

Model

H mm

H1 mm

H2 mm

H3 mm

H4 mm

Model of the Speed Reducer

Rotate Speed/Speed Ratio

Speed Ratio/Speed Ratio

Motor Power

Weight kg

50L

1550

255

406

125

310

XLD3-i-1.1

85/17

63/23

1.1

270

100L

1690

200

560

150

330

XLD3-i-1.1

85/17

63/23

1.1

340

300L

1910

280

590

225

440

XLD4-i-2.2

85/17

63/23

2.2

700

500L

2320

340

725

250

440

XLD4-i-3

85/17

63/23

3

930

1000L

2650

360

780

325

530

XLD4-i-4

85/17

63/23

4

1610

2000L

3200

400

1200

375

630

XLD5-i-5.5

85/17

63/23

5.5

2010

3000L

3390

450

1310

425

690

XLD6-i-7.5

85/17

63/23

7.5

2590

4000L

3976

450

1760

425

690

XLD6-i-7.5

85/17

63/23

7.5

3160

5000L

4150

480

1760

475

690

XLD6-i-7.5

85/17

63/23

7.5

4000

As a professional stainless steel reactor manufacturer and supplier in China, our company also offers steam heating reactor, nanometer copper and nickel composite powder, fluidized bed jet mill, and agitated bead mill, among others.
