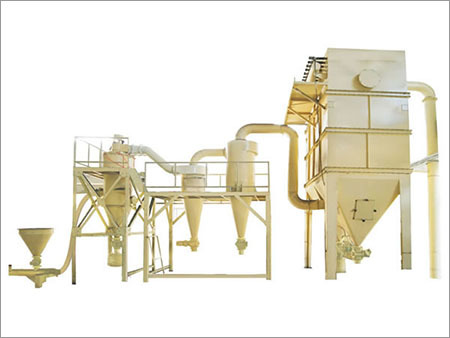

Vertical Air Classifier

Vertical Air Classifier
Vertical Air Classifier
Product Code : 02
Product Description

The Vertical Air Classifier applies to the fine grading of dry micron products. It can grade spherical, flaky and needle-like particles as well as particles with different density.

The grading rotor with the latest design is adopted, which significantly improves the particle size of the graded products, thus achieving high precision grading. In the meantime, the grading efficiency is greatly increased. Multiple classifiers can be used in series to produce products in multiple particle size ranges. This equipment can also be used with various grinding devices to improve production efficiency.

Advanced automatic control system is adopted and the running state is displayed in real time. Easy to operate, the Vertical Air Classifier runs under negative pressure. The dust emission is less than 40mg/m3 and the noise is not higher than 60dB.

Specifications

Model

LFJ-400

LFJ-600

LFJ-800

Grading Size (μm)

2-15

2-15

2-15

Capacity (kg/h)

300-1000

500-1500

1000-3000

Rotor Power (kw)

4

7. 5

11

System Air Flow(m3/h)

2400

3800

5000

Air Consumption(m3/min/MPa)

1.6/0.7

2.0/0.7

3.0/0.7

  • Feeding Device
  • LFJ Vertical Air Classifier
  • Cyclone Separator
  • Dust Collector
  • Draught Fan
  • Rotary Valve

As an experienced Vertical Air Classifier manufacturer and supplier in China, we provide not only Air Classifier System, but also metallic nanometer powder, sand mill, bead mill system, reactor, jet mill system, and much more.
